Hanyoung Nux Co., Ltd.

Counter / Timer

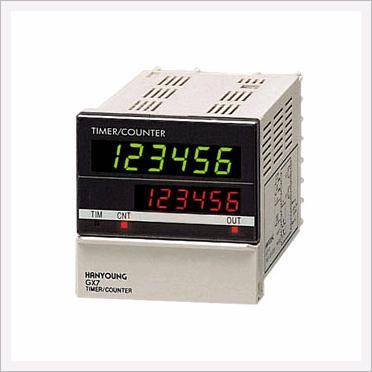

See Larger Picture : Counter / Timer

Contact Now* Send an Inquiry to this supplier.
  • Share to :
  • Pinterest

Quick Information

  • Model Number : GX7-P

Description

Descriptions

Appearance(mm)
72(W) x 72(H) x 112(D)
Sort

Freeset

Control method
Up, Down, Up/Down
Display digit
7Segment L.E.D , LED Height PV : 10mm, SV : 8mm
Stage
1stage, 2stage
Number of digits
4, 6 digits
Counting speed
30 / 1K / 3K / 5Kcps
Counting input
Contact, Non-contact
Reset
External reset : Min. input signal width 0.02sec
-------------- ( Contact, Non-contact input )
Power reset : Min. power opening time 0.5sec
Inhibit input

Voltage input ( D.C input )
H : level 5 ~ 30VDC,
L :level 0 ~ 2VDC ( input resistance Approx. 4.7kΩ)

Memory protection
Semi-permanent
Power voltage
100 ~ 240VAC ( 50/60Hz )
Power consumption
Approx. 5VA ( 220VAC 60Hz )
Supply power to sensor
12VDC 50mA Max
Control output
Contact output : 1c 250VAC 3A ( resistance load )
Non-Contact output : 30VDC 100mA Max
Insulation resistance
Min, MΩ ( At 500VDC ) part of conduction terminal and exposured non-electrify metal part
Dielectric strength
2,000VAC 50/60Hz for 1minute( Between + and - charging terminals )
Vibration
Malfunction
2 ~ 55Hz, X,Y,Z each positions for 10 minutes
Durability
10 ~ 55Hz, 0.76mm, X,Y,Z each positions for 2 hours
Shock
Malfunction
100㎨ 6 positions each 3 times
Durability
300㎨ 6 positions each 3 times
Life
Mechanical
10 millions operations ( Relay type )
Electrical
0.3 millons operations ( Relay type )
Ambient temperature and humidity
0 ~ 50℃ ( 32 ~ 122℉ ).35 ~ 85%RH ( No icing )

Product Image

  • Counter / Timer image
